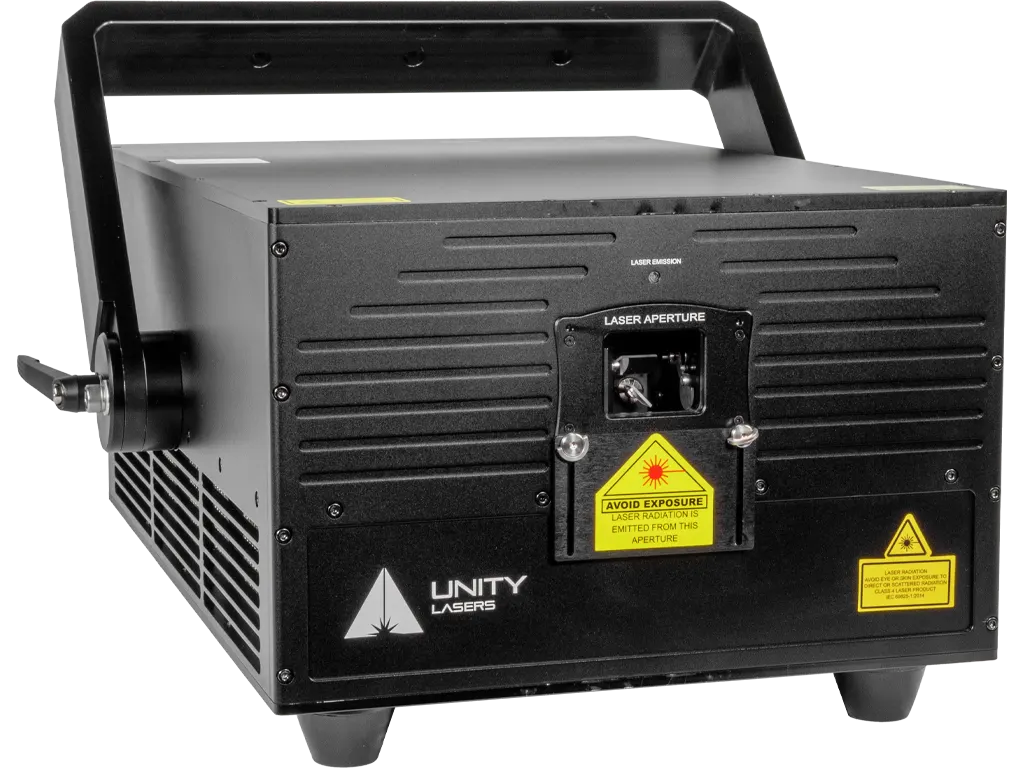

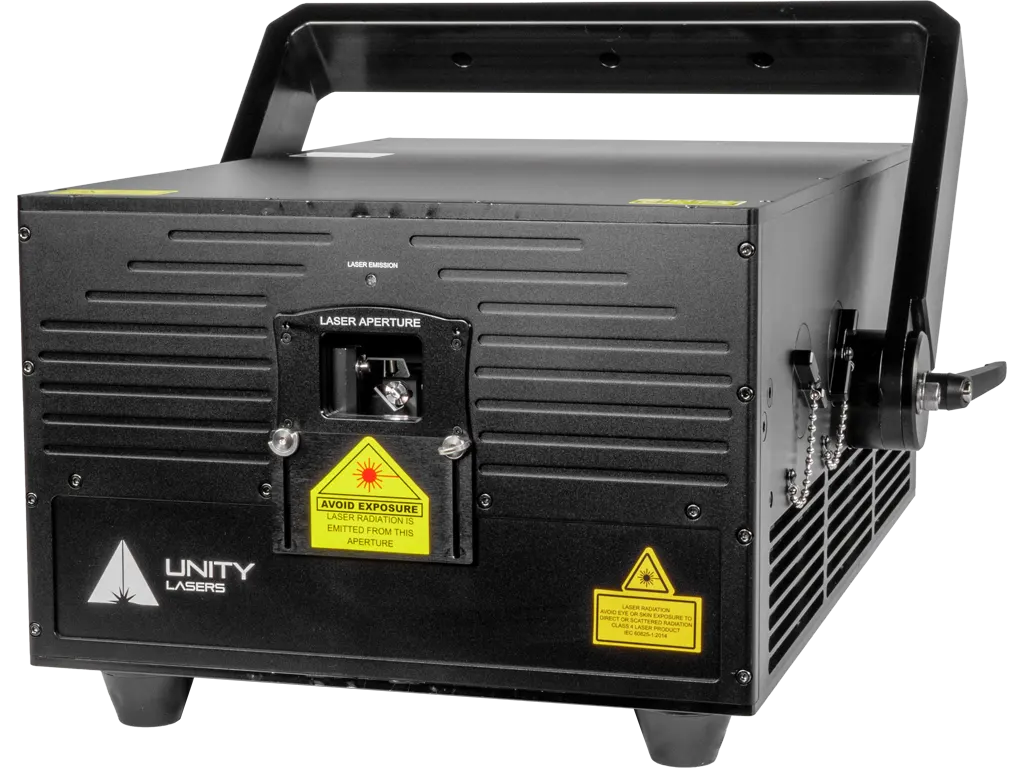

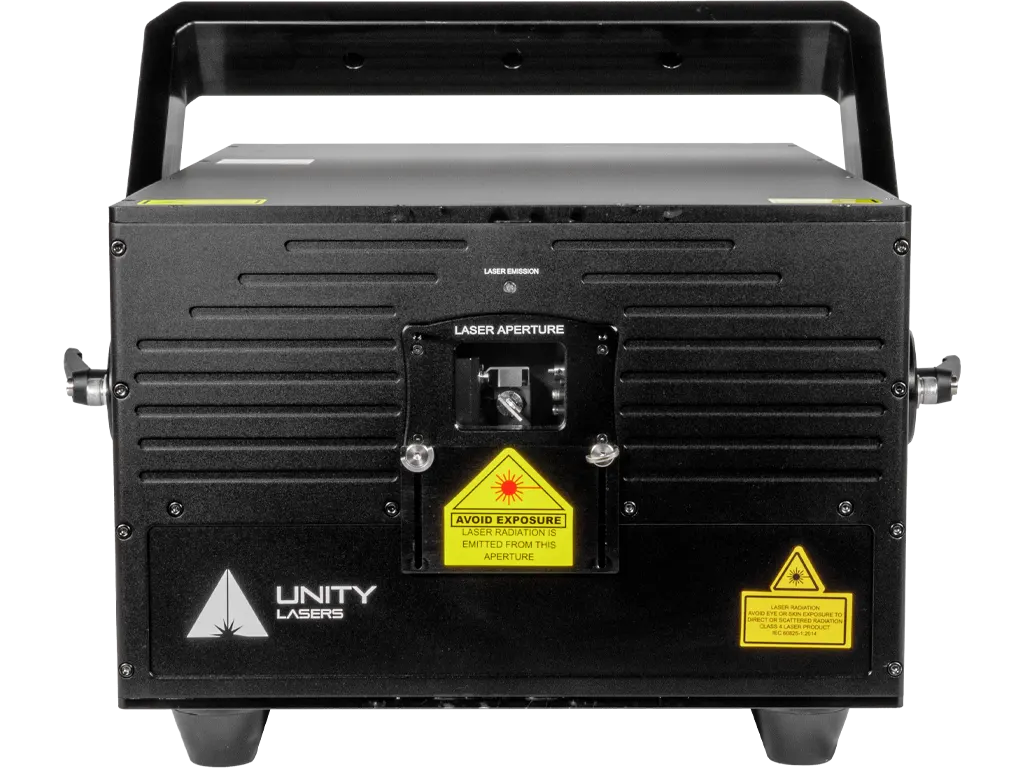

UNITY ELITE PRO 60 FB4 (IP65)
UNITY ELITE PRO 60 FB4 (IP65)
Price on application
Request QuotationOverview:
The Unity Elite pro series combines all of the great operational and safety features included in the other Unity models, and also features the Pangolin FB4 'media server' built in. This gives the user many options to control the laser, including the free bundled Quickshow software. DMX, Artnet and Autoplay modes are also available.

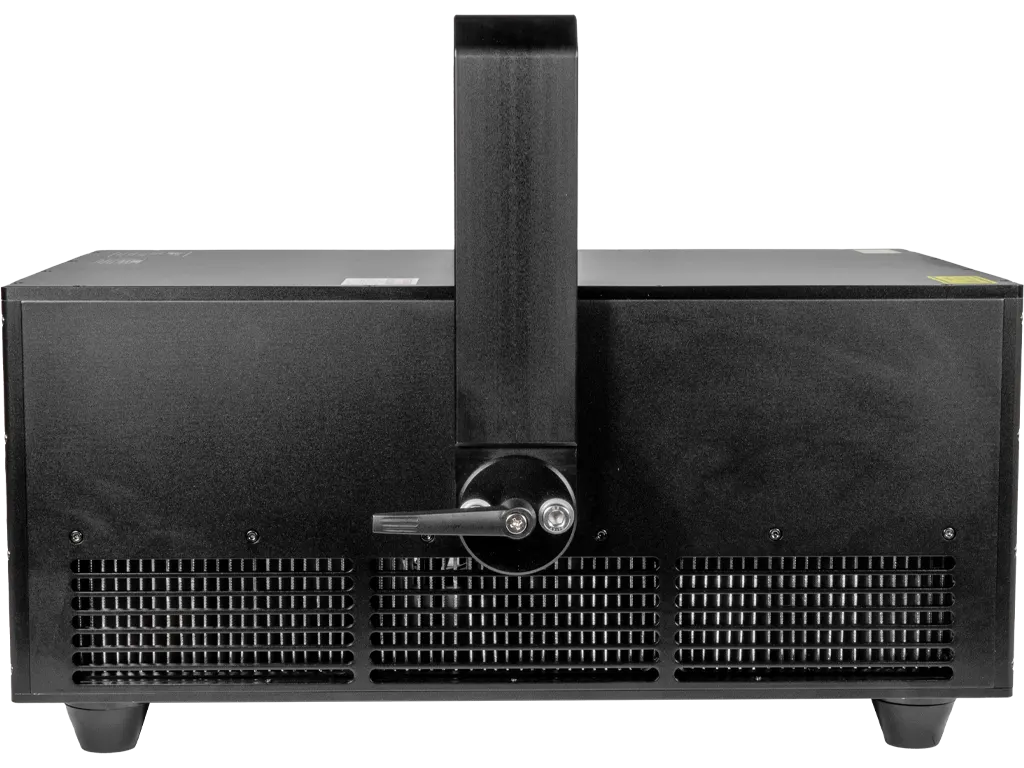

Distinguishing features the ELITE 10 PRO has include Ethernet in and out top allow many lasers to simply be daisy chained. An access panel on the side of the laser allows for fast RGB alignment without the need to open the case.
Ingress protection of IP65 means there is no need for a separate rain cover to protect from wet weather.
The Elite 10 PRO is perfectly suited to the majority of larger indoor and outdoor events
Specifications:
| Product Name: | Unity ELITE 60 PRO FB4 (IP65) |
|---|---|
| Type of Laser: | Full-color, Semiconductor diode laser system |
| Guaranteed Optical Output: |
>59W |
| Suitable For: | Lighting professionals: large indoor venues (up to 40,000 people), medium outdoor shows. Beam show, text, graphic, and mapping capable |
| Control Signal: | Pangolin FB4 DMX [Ethernet, ArtNet, DMX, sACN | PC, Lighting Console, Auto Mode, Mobile App: Apple, Android] |
| Scanning System: | 35,000 points per second @ 8° |
| Scan Angle: | 45° |
| Safety: | Fully complies with the latest EN 60825-1 and FDA regulations |
| Weight: | 50kg |
| Package Includes: | Laser projector w/ FB4 DMX, IP65 housing, protective case, Estop box, Estop cable (10M/30ft), ethernet cable (10M/30ft), power cable (1.5M/4.5ft), interlock, keys, outdoor RJ45 connectors, manual, quickstart guide, variance card (* service dongle if outside US) |
| R | G | B [mW]: | 14,800 | 21,000 | 24,000 |
| R | G | B [Wavelength]: | 637nm | 525nm | 445nm |
| Beam Size [mm]: | 7 x 7 |
| Beam Divergence: | <1.0mrad [Full Angle] |
| Modulation: | Analog 100kHz |
| Power Requirements: | 100-240V/50-60Hz |
| Consumption: | Max. 1200W |
| Operation Temperature: | (-10 °C)-45 °C |
| Ingress Rating: | IP65 |

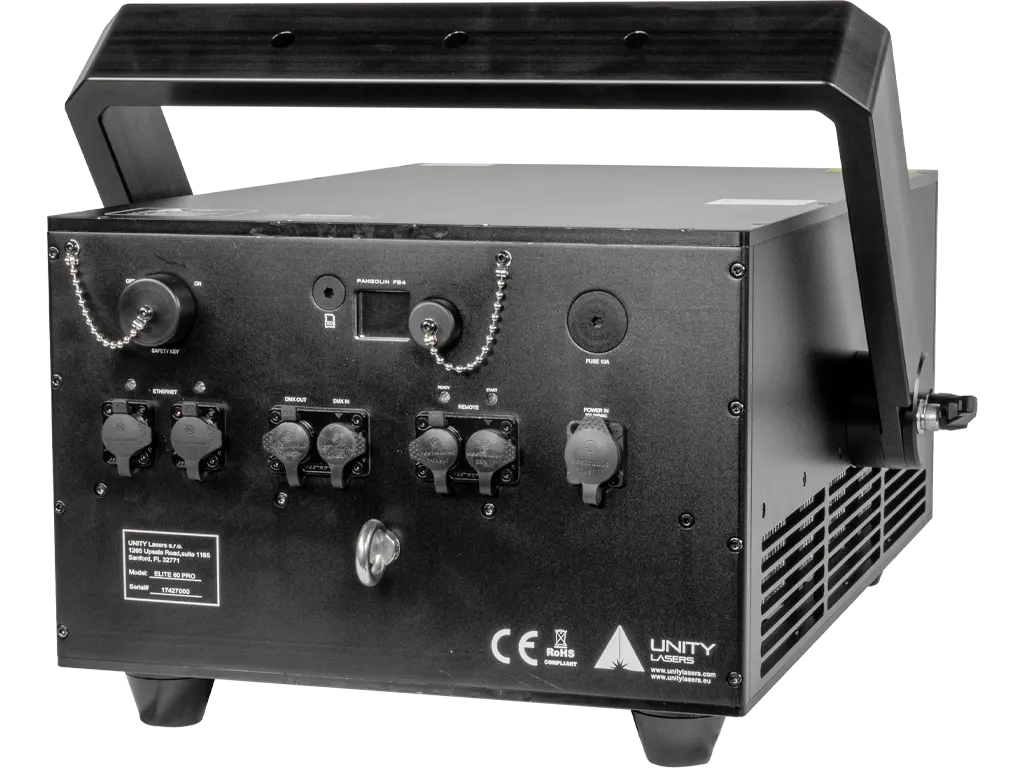

| System Features: | All the adjustments, such as power output of each color, X & Y axes invert, X & Y size and position, safety, etc., are managed digitally by the FB4 control system. Ethernet in/out, power in/out, DMX in/out, Estop in/out |
| Laser Safety Features: | Keyed interlock, Emission delay, Magnetic interlock, Scan-fail safety, Mechanical shutter, Adjustable aperture masking plate. |
| Notice: | *Due to the Advanced Optical Correction technology used in our laser systems, each laser colour's optical power output may slightly differ from the specification of the respective laser module(s) installed. This does not affect the total guaranteed power output. |
| Dimensions [mm]: | Depth: 629 Width: 555 Height: 279 |
