KVANT Burstberry Cluster

Name: KVANT Burstberry Cluster
Brand: KVANT Lasers
Price: 41950.0 AUD
Availability: InStock

$41,950.00 AUD

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

Discounted pricing for trade clients. Please email for trade pricing

Request Quotation

Overview:

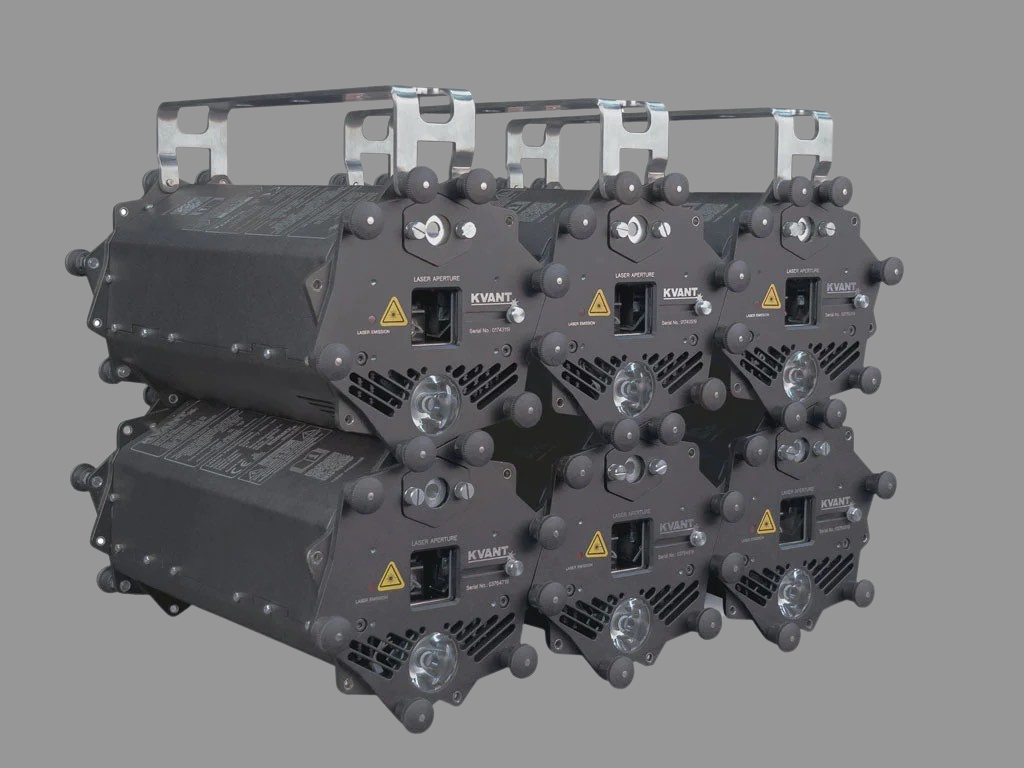

The pack of six Burstberries provides over 150,000 points-per-second drawing capacity at an 8-degree projection angle and 20 frames per second, making setup and handling consistently efficient. Alignment between the projectors remains even if the setup is moved afterward.

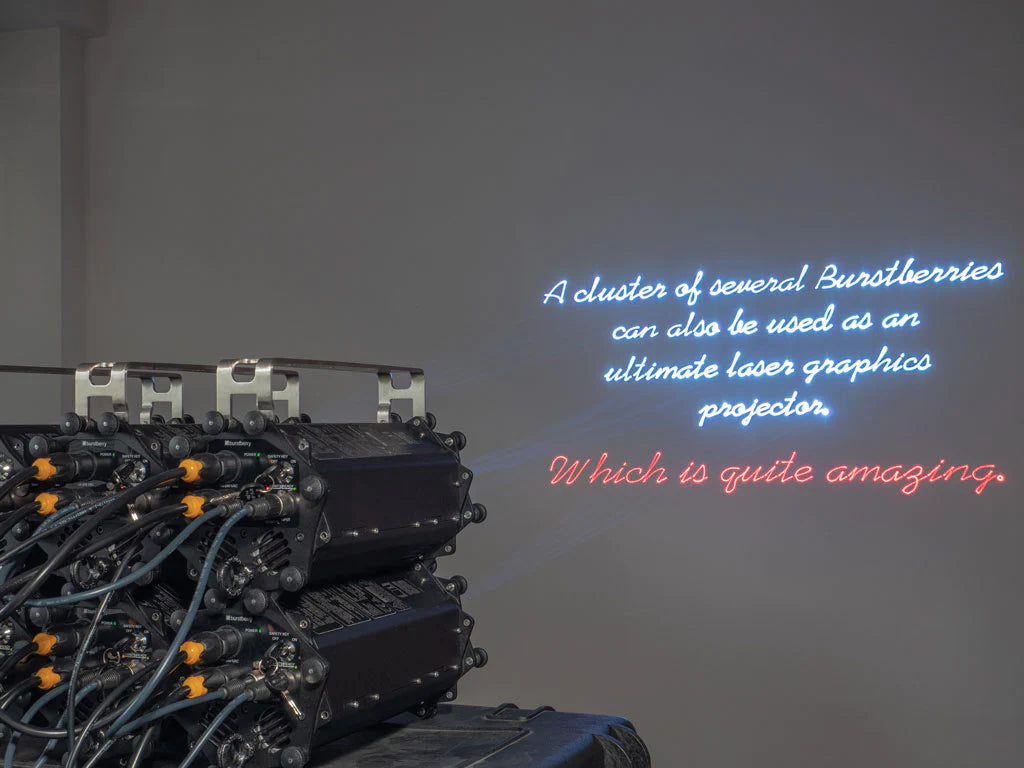

Imagine the creative potential you can unlock with 150,000+ points per second, with no flickering projected content. The Burstberry Cluster seamlessly allows you to control complex laser effects, making it an ideal product for any lighting designer that uses Artnet or DMX.

Specifications:

Source \| Type:	Semiconductor laser diode \| Full-colour RGB laser projector/Lighting fixture
Suitability:	Indoor/outdoor laser displays [atmospheric, abstract, text, animations]
System control:	FB4-STD [Ethernet, ArtNet \| PC, Lighting Console or Autoplay]
Compliant with:	EN 60825-1 [tested by TÜV SÜD], FDA
Weight [kg]:	23
Size [WxHxD, mm]:	approx. 520 x 350x 359 [Technical Drawings are in the SUPPORT section of this page]
Guaranteed opt. output [W]:	12
R \| G \| B [W]:	0.37 \| 0.8 \| 1.2 [*see note A below]
Wavelengths [nm, ±5nm]:	637 \| 525 \| 445
Beam size [mm]:	5.2 x 5.5
Beam divergence [mrad]:	0.7 [full angle, averaged value, *see note B below]
Modulation [kHz] \| type:	100 \| analogue
X-Y scanners:	ScannerMAX 506 Compact \| 168 Kpps @ 8°, max. 60° [per 6-unit cluster]
Power requirements [V] \| Input:	100-230/50-60Hz \| Neutrik powerCON TRUE1
Max. power consumption [VA]:	340 [each sub-unit]
Operation temperature [°C]:	10-35

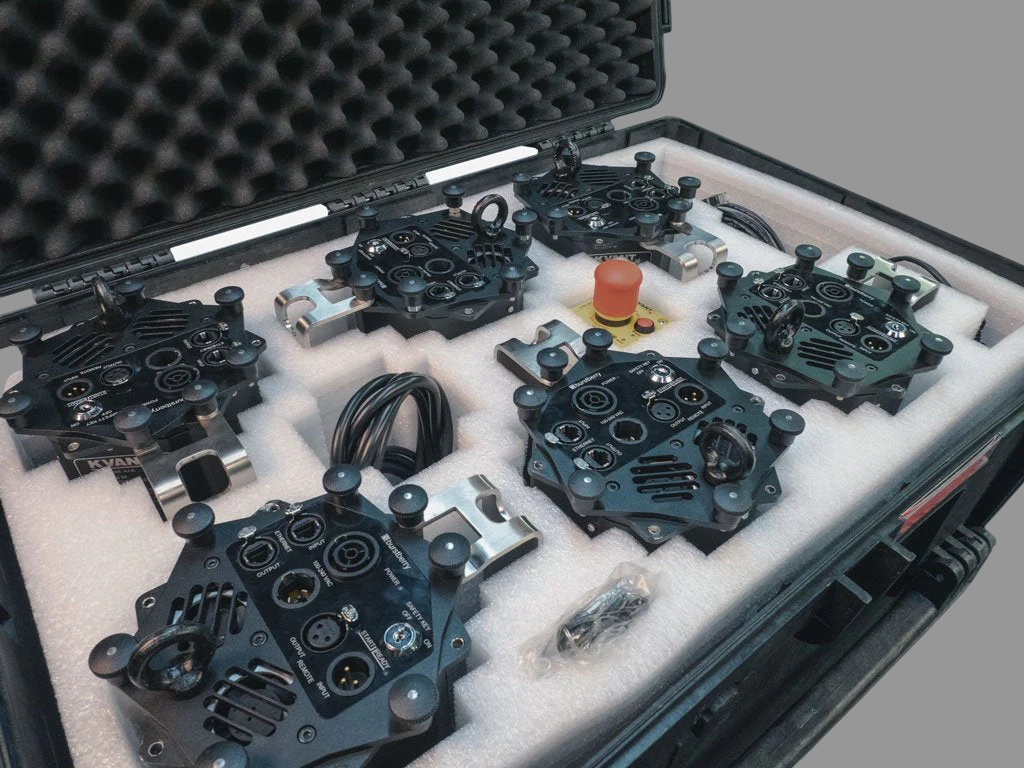

Included in the set:	Heavy-duty fligh case, 1.5M power lead, 1M AC jumper cables, 10M Ethernet rj45 signal cable, 1M Ethernet rj45 signal cables, E-STOP remote with 10M 3-pin XLR cable, 1M 3-pin XLR cables, safety keys, interlock connectors [for the USA only], USB memory stick with the user manual, QC certificates. Pangolin QuickShow laser control and creation software is available for FREE download.
HW features:	All the basic system settings and adjustments such as power output adjustment for each colour, X & Y axes invert, X & Y size and position, etc. are managed via the software and built-in FB4 control interface. Scanning system overload protection. Star-burst laser effect [2nd aperture]. 3W white LED blinder.
Laser safety features:	Keyed interlock, emission delay, magnetic interlock, scan-fail safety, fast electromechanical shutter [reaction time <20ms], adjustable aperture masking plate, Emergency STOP system with keyed remote and manual RESTART button.
note A	Due to Advanced Optical Correction technology used in Kvant systems, the real power output of each laser module installed within the system may slightly differ from its specification. This doesn't affect the total guaranteed power output of the system.
note B	The beam divergence total is calculated as an average arithmetic value of all individual colours. The divergence of each colour is calculated as: 1. FWHM of the beam cross-section for round beams, or 2. The arithmetic average of the beam's horizontal and vertical divergence for all rectangular beams.
